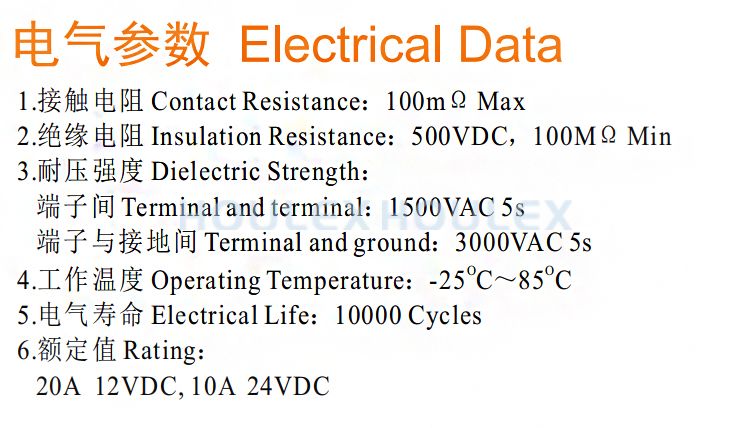

接触电阻 Contact Resistance:100mΩ，Max

绝缘电阻Insulation Resistance:500VDC，100MΩ Min

耐压强度Dielectric Strength:

端子间 Terminal and terminal: 1500VAC,5s

端子与接地间Terminal and ground: 3000VAC,5s

工作温度Operating Temperature: -25℃~85℃

电气寿命Electrical Life: 10000 Cycles

额定值Rating: 10A24VDC
